1. Purpose:
It is used for subcutaneous, intradermal, intravenous and / or
intramuscular injections in medicine and veterinary medicine. Syringe self-destructive with
device to prevent reuse.
2. Instructions for using self-destructive syringes:
✓ Open sterile individual packaging;
✓ Remove the syringe;
✓ do not withdraw the plunger to fill the syringe with a treatment solution;
✓ Remove the protective cap from the needle, collect the required amount of liquid for injection into
syringe by slow piston withdrawal;
✓ Before the introduction of the drug, remove the remaining air from the syringe tube;
✓ After manipulation, pull the plunger to activate the protective mechanism
back, you will hear a click;
✓ The needle will get inside the syringe;
✓ Break off the plunger and dispose of the syringe;
✓ Dispose of the used syringe according to established regulations.
1 Open the package 2 Remove the cap 3 Give an injection
4 Pull down to “click” 5 Needle lock 6 Break off the stem

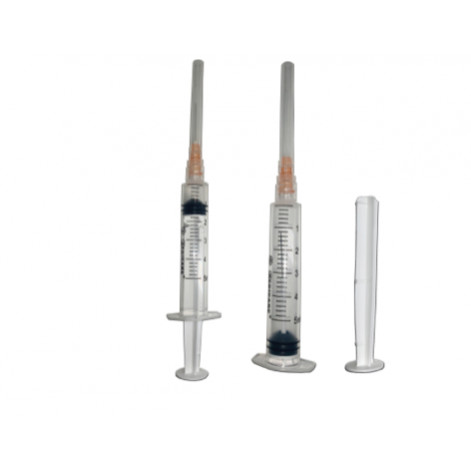

3. Specifications:
✓ three-component;
✓ Volume and size of the needle:
- 10.0 ml, 25G x ¾", needle size 0.5 x 20mm, Luer Lock;
✓ Transparent barrel, cannula and cap are made of polypropylene homopolymer,
piston - made of polyethylene;
✓ Has special devices to prevent reuse:
- piston shape for engagement with needle pavilion
- the needle, which, after engagement with the piston, is drawn into the syringe barrel;
- the piston rod is shaped for easy breaking by moving to the side when proving the piston to
retaining ring;
✓ Clear, abrasion-resistant scale;
✓ Retaining ring (lock block)
✓ The piston with a rubber seal made of synthetic material does not cause
allergic reactions;
✓ Needle material - austenitic stainless steel;
✓ Integrated atraumatic needle with cap and trihedral sharpening of the needle
✓ Does not contain latex;
✓ Shelf life 5 years from the date of manufacture indicated on the package;
✓ Sterile, non-pyrogenic, non-toxic;
✓ Individual packaging.
4. Caution:
✓ For single use only;
✓ The product should only be used by qualified medical personnel;
✓ Do not use if packaging is damaged;
✓ Use immediately after opening the package.
5. Storage conditions:
✓ Avoid moisture;
✓ Avoid exposure to direct sunlight and heat;
✓ at temperatures from 10 to 35 ° C.
